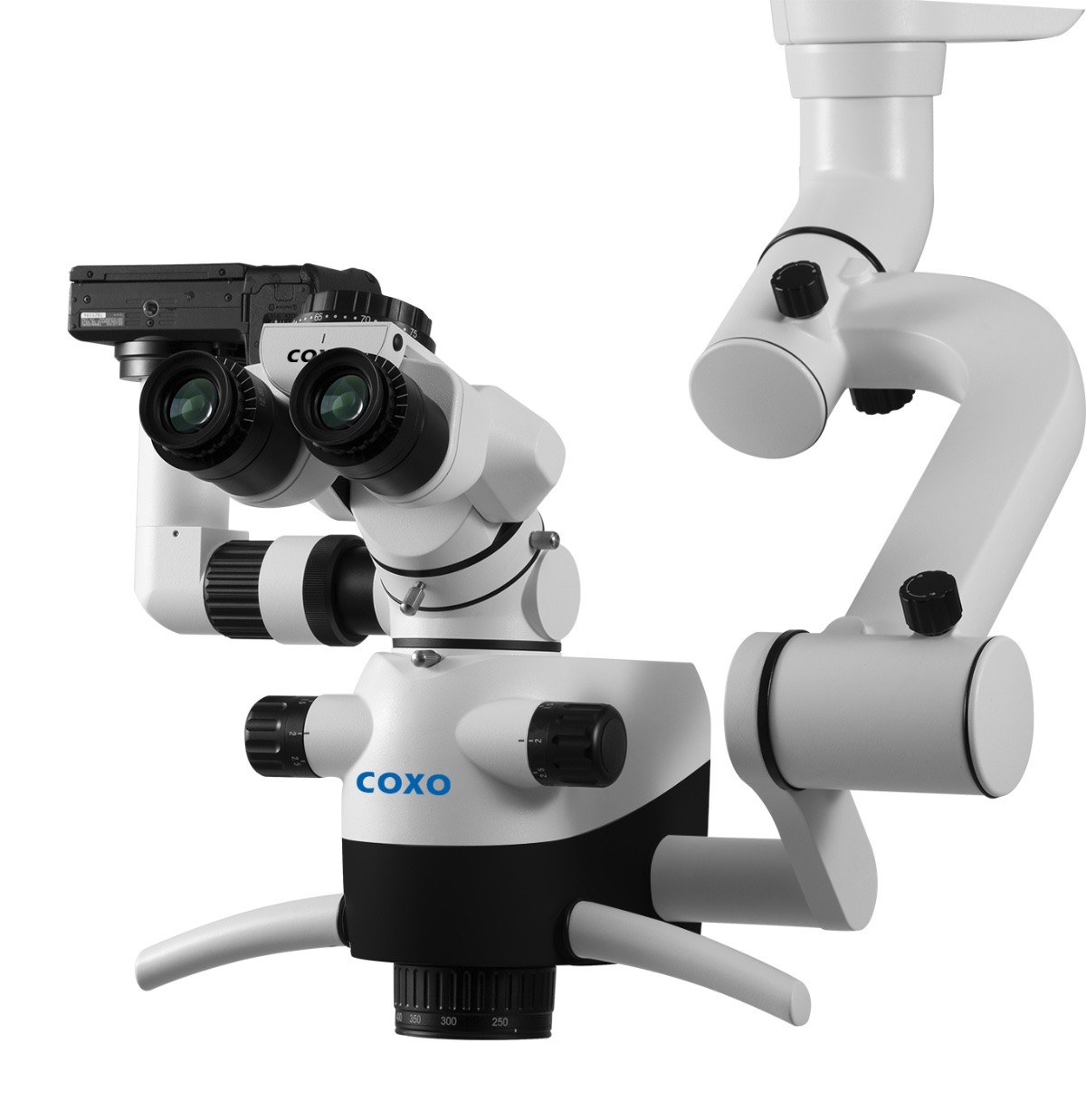

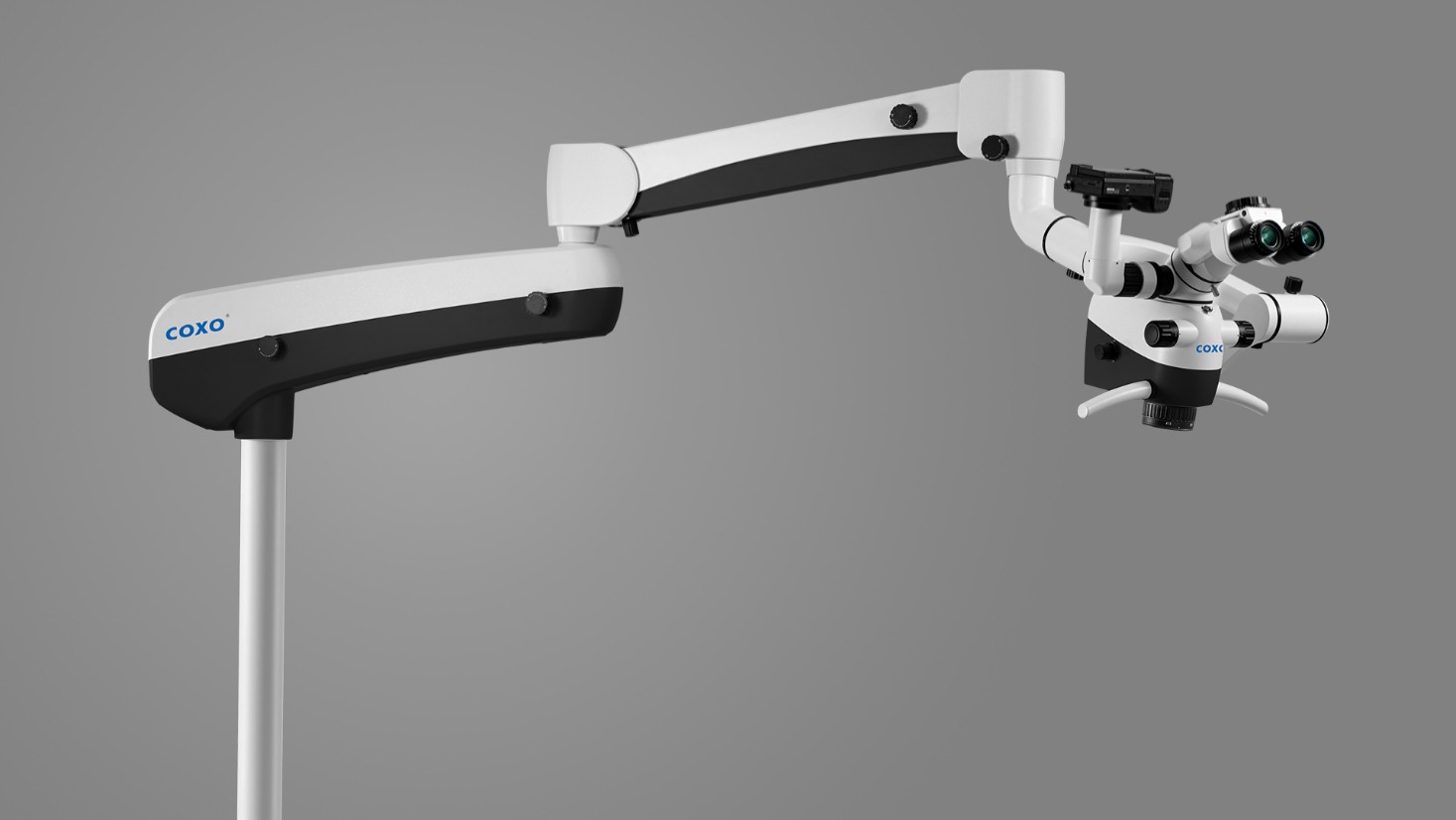

C-CLEAR-2+ TOP COXO Microscope

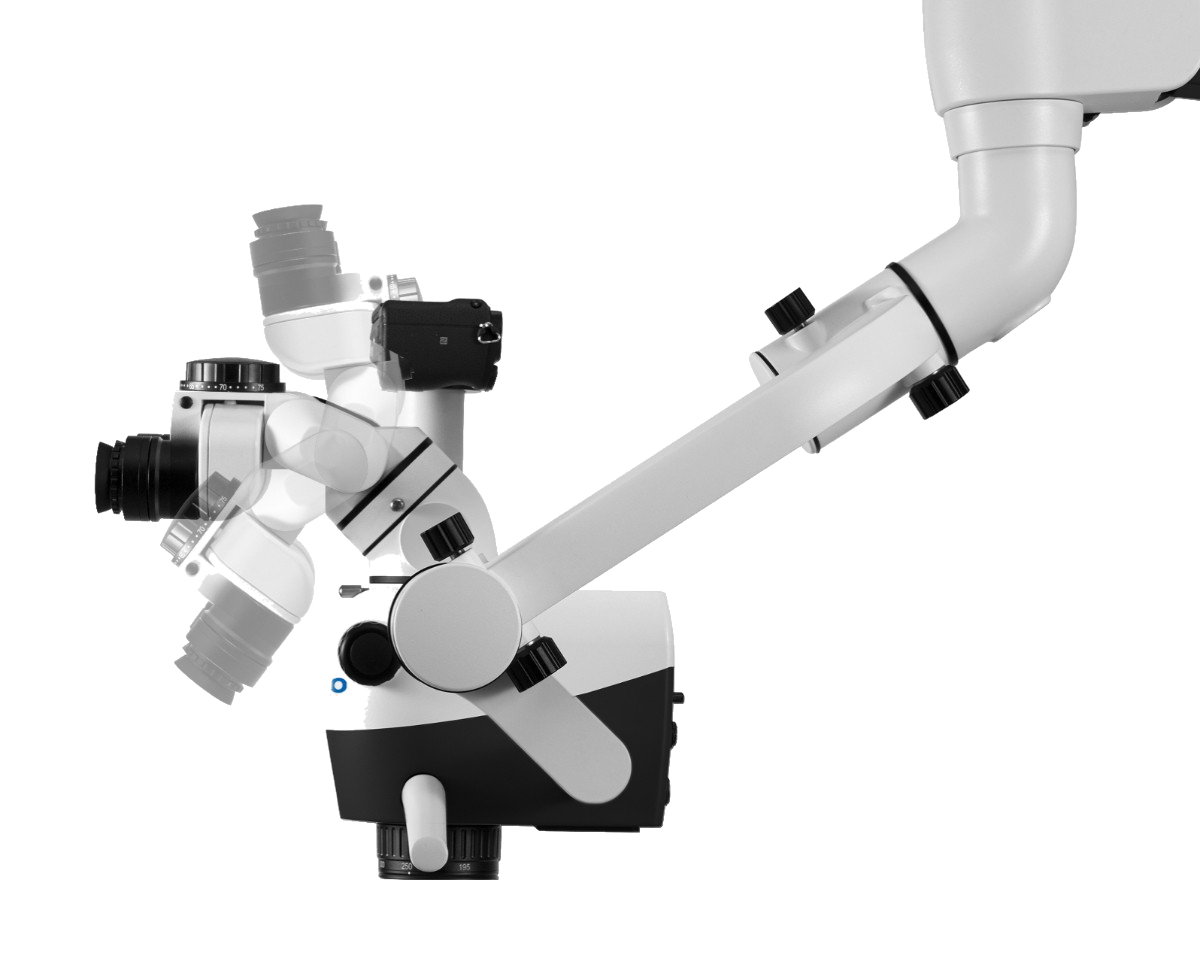

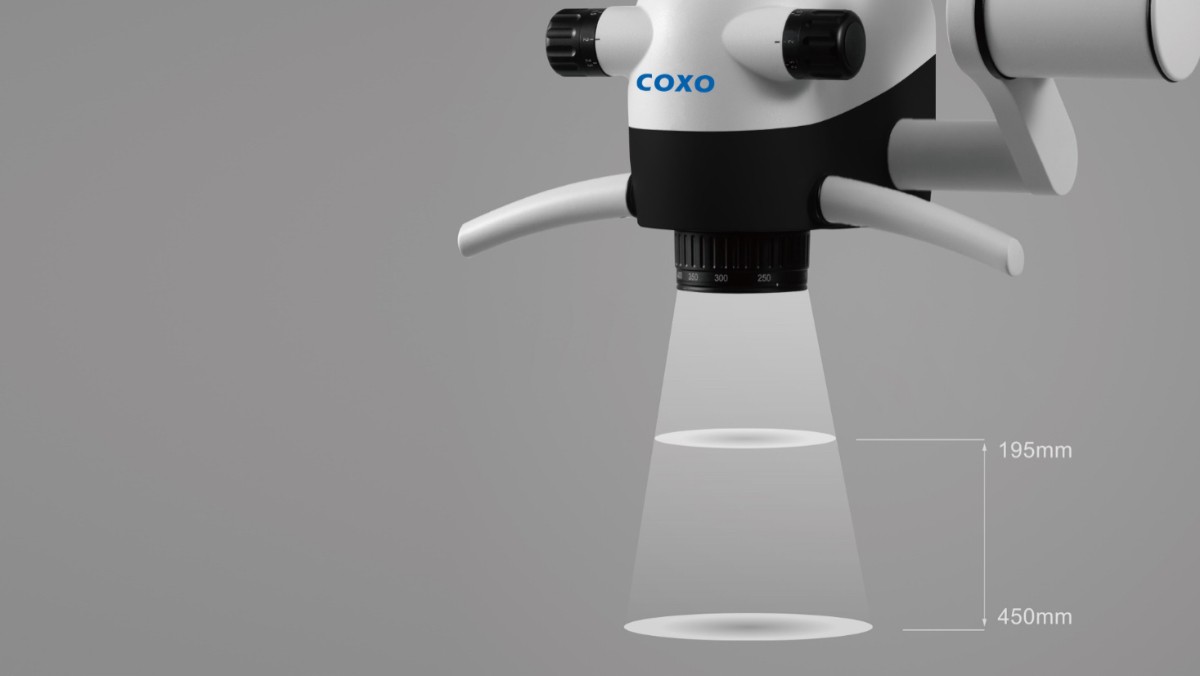

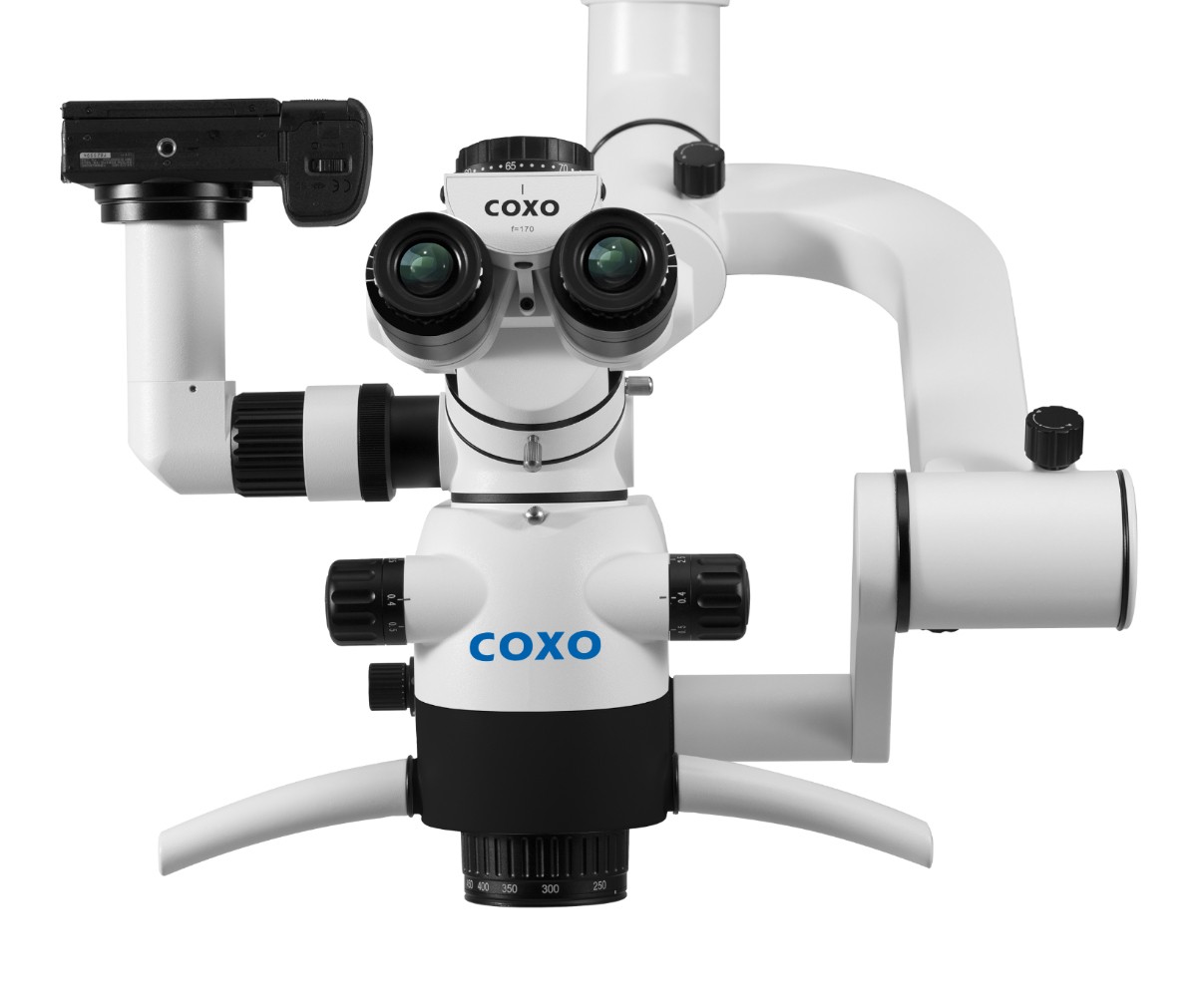

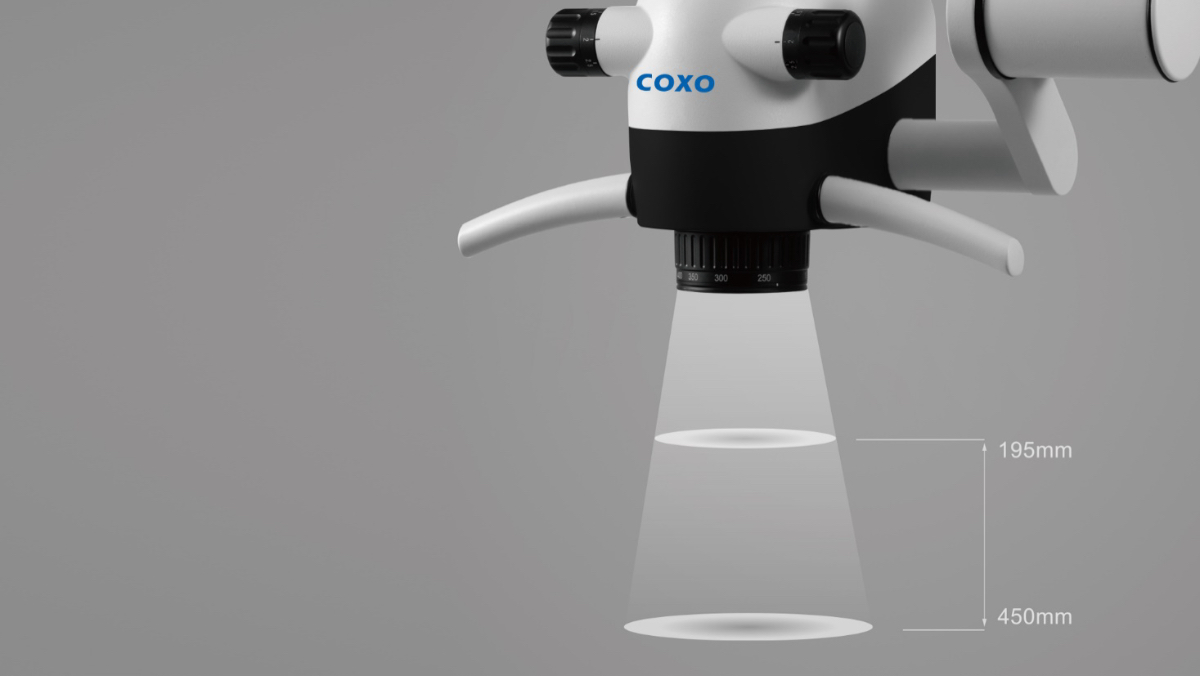

Optical system: apochromatic system providing maximum color correction for three wavelengths, which can correct red. Refraction of different wavelengths of green and blue visible light ensures that at every magnification level full details can be seen. Binocular: High eyepoint, 12.5X wide-angle eyepiece, adjustable diopter +7 ~ -7D, suitable for operators wearing glasses (wide-angle eyepieces with high eyepoint provide a wider field of view, making it easier to use. The user's eyes can easily observe without getting close to the eyepieces. Photometric design suitable for people wearing glasses.) Convenient interpupillary distance adjustment function, range 55–75 mm, adjustable tilt angle from 0 to 180 degrees. Optical splitter: "three-in-one" beam splitter: 45° expander, beam splitter, optical integration, splitting ratio 2:8 or 5:5. Objective: large zoom objective for general dentistry with working distance from 195 mm to 450 mm, focusing range fully covers the entire depth of the oral cavity, allows increasing efficiency and focusing while maintaining ergonomics. The objective has a standard protective shield, protecting against splashing water droplets and contaminants during treatment, and is easy to clean. Magnification system: continuous zoom ratio 0.4–2.5. Total magnification: 1.6X–19X. Illumination system: illumination intensity over 100,000 lux, color temperature 5700 K, color rendering index > 90%, has high color perception and reproduction indices, making it easier to distinguish treatment details, especially in small, deep and narrow cavities. Filters: built-in orange filter, green filter, white spot size adjustable in three sizes: large, medium and small. White light source mode: high color rendering index, more realistic colors. Ergonomics: The microscope is equipped with a host balance force adjustment device, a support system damping adjustment device and a pendulum system. The host balance force adjustment device — the microscope stand can adjust torque and damping according to the load to maintain the balance of the microscope; after loading digital accessories such as cameras and video cameras, the stand can still be adjusted to keep it balanced. The support system damping adjustment device — when you set the microscope support system in any position, the microscope support system can suspend. Pendulum system — provided that the seated position of the doctor remains unchanged, the host, tilting left and right, can maintain a horizontal observation position. Digital imaging: Reserved HDMI transmission interface, external HD video system — external high-definition video system interface will help doctors visualize the diagnosis and treatment process, provide patients with more accurate real-time images, increase communication efficiency and greatly improve patient satisfaction with treatment, and conveniently share treatment experience in the future, compatibility with Canon, Sony cameras, adjustable focal length, optional direct camera power supply, wireless camera foot pedal — the system takes necessary photos at any time, and the wireless foot switch can be used at any time, 4K HD DELL 24" display. Mounting system: medical silent casters, four wheels can be locked, floor mounting. Mechanics: high-quality German gas springs and high-quality German bearings are used in key parts. This ensures better mechanics when moving the microscope arm. Power supply: 100–240 V AC 50/60 Hz. Power: 50 VA. Safety class: class I.
